WL-121 – Stainless Steel Bending Beam Load Cell

WL-121 – Stainless Steel Bending Beam Load Cell

Product Description

• The WL-121 is a stainless steel bending beam load cell designed for precision weighing in demanding environments. With maximum capacity options ranging from 50kg to 1000kg, it delivers reliable performance for industrial applications. The compensated off-center load error ensures accuracy even with larger platform sizes, supporting maximum platform dimensions of 800×1000mm.


















  Features & Applications

  • Bending beam load cell construction

  • Made of stainless steel for durability and hygiene

  • Maximum capacities: 50kg, 100kg, 200kg, 500kg, 1000kg

  • Compensated off-center load error

  • Supports platform sizes up to 800×1000mm

  • Mainly used in food, beverage, pharmaceutical, and other special fields

  • Also suitable for belt scales, platform scales, and other electrical weighing devices




Specifications

Dimensions(mm)

Load direction

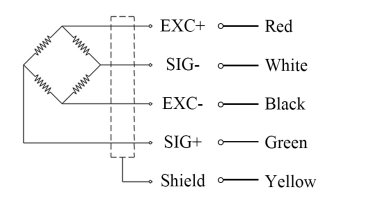

Wiring code

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.

stainless steel single point load cell

bending beam load cell with warranty

WL-121 load cell stainless steel

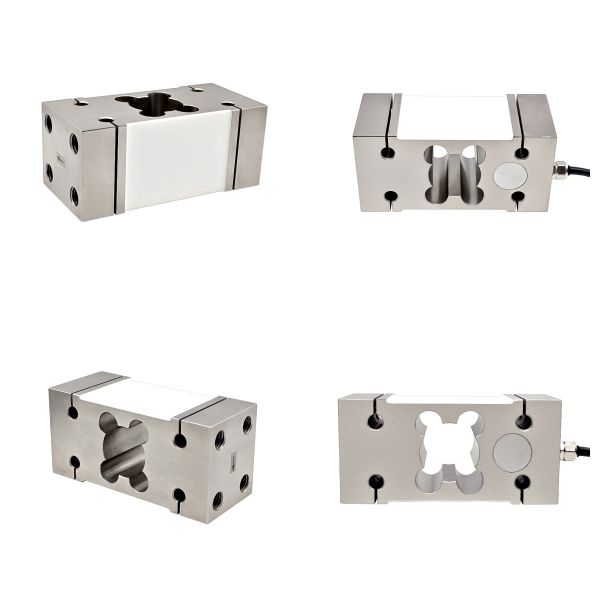

WL-121 – Stainless Steel Bending Beam Load Cell Images
